£10.07 ex. VAT

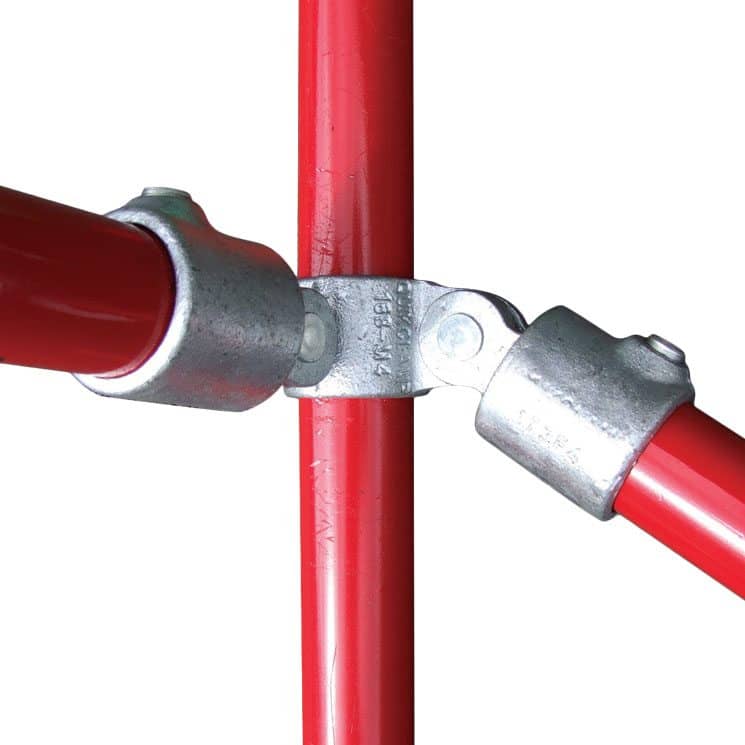

Our 90-Degree Corner Swivel Tube Clamp 168 provides secure, adjustable connections for tube structures. It joins two tubes at a fixed right angle with swivel movement for alignment, ideal for handrails, barriers, and frameworks. Made from galvanised steel, it fits 48.3mm-diameter tubes (size 5), has an arm length of 68 mm and a base width of 60 mm, and weighs 1.15kg. Durable and corrosion-resistant for indoor or outdoor use.
Also available in 26.9mm, 37.7mm, and 42.4mm diameters.
Checkout to get your delivery cost
Sussex Depote
Trusted by customers
Best prices
The tube clamp 168 offers professionals and DIYers a reliable, flexible connector for building sturdy structures. Its swivel mechanism enables quick angle adjustments, minimising assembly errors and saving time. Made of hot-dip galvanised steel, it resists rust and corrosion for lasting performance in tough environments. Smooth edges and a secure grub screw ensure safety and tool-free adjustments. The modular design allows easy expansion or modification without welding, reducing costs and complexity.
| Specification | Details |
| Material | Hot-dip galvanised steel for superior corrosion resistance |
| Tube Compatibility | Fits 48.3mm outer diameter tubes (nominal bore 1 1/2″) |
| Angle | Fixed 90 degrees with 360-degree swivel capability |
| Dimensions | Arm length (A): 68mm; Base width (B): 60mm |
| Weight | 1.15kg per unit |
| Finish | Galvanised coating for weatherproofing |
| Fixing Method | Grub screws (included) for secure, non-permanent attachment |
| Load Capacity | Up to 500kg (depending on tube quality and installation; always test in application) |
| Standards Compliance | Meets BS EN 1562 and BS EN 1563 for malleable iron fittings |
Enhance your modular tube clamp projects by adding the 3-way 90-degree elbow 128 for secure three-tube corner joins in handrails, barriers, or frameworks, or pair it with the combination socket tee & crossover 165 for versatile branching and straight-through cross connections. For heavy-duty structural scaffolding that requires adjustable angles (such as diagonal bracing, raking tubes, or complex facades), explore our full range of swivel couplers – 360°-rotating fittings built to EN 74 standards with a load capacity of up to 6.25 kN.
The 90-Degree Corner Swivel Tube Clamp 168 shines in scenarios where adaptability is key. It’s commonly used in constructing handrails for staircases or balconies, providing stable corners that can be adjusted on-site. Safety barriers around machinery or walkways benefit from its swivel feature, allowing for irregular shapes without compromising strength. In retail or exhibition settings, it helps build display stands or shelving units that are quick to assemble and reconfigure. For outdoor projects like garden structures or temporary fencing, its weather-resistant build ensures longevity. Even in furniture design, such as custom benches or frames, this clamp offers a professional finish without needing specialised tools. Its versatility extends to industrial applications, such as pipe supports in warehouses, making it a staple for builders, fabricators, and hobbyists seeking reliable, modular solutions.
Safety is paramount with our tube clamp 168. Each unit undergoes rigorous testing to handle substantial loads, but we recommend professional installation and regular inspections to maintain integrity. It complies with British Standards BS EN 1562 for material quality and BS EN 1563 for performance, ensuring it meets industry benchmarks for strength and durability. For compliance in specific regions, it aligns with the general EU construction product regulations. Always pair it with compatible tubes and avoid overloading; consult load charts or an engineer for heavy-duty applications. Environmentally, the galvanised finish minimises maintenance and waste. We offer bulk pricing for large projects; contact us for quotes. Remember, while this clamp is user-friendly, wearing protective gear during installation is advised to prevent slips or pinches.
The swivel allows easy angle adjustments during setup, making it perfect for uneven surfaces or custom fits without disassembling the structure.
Slide onto the tubes, align to 90 degrees, and tighten the grub screws with an Allen key, no welding needed.
The swivel adds flexibility for adjustments, unlike fixed versions that lock in place permanently.
It is suitable for many vertical applications, such as posts or supports, but always calculate the combined load and consult a structural engineer if the setup will bear significant weight (e.g., people leaning on railings or heavy equipment). The swivel design excels at horizontal or angled bracing rather than pure compression loads.
No, the swivel remains adjustable until you fully tighten the grub screws. Once tightened, the clamp holds the 90-degree angle securely under normal use. If you need a completely fixed (non-swivelling) connection, consider our fixed 90-degree corner clamp instead.
When correctly fitted to a clean, properly sized 48.3 mm tube, there should be virtually no play. Any slight movement usually indicates the tube is undersized, the grub screws are not tight enough, or debris is present, re-check and re-tighten as needed.
