£95.00 ex. VAT

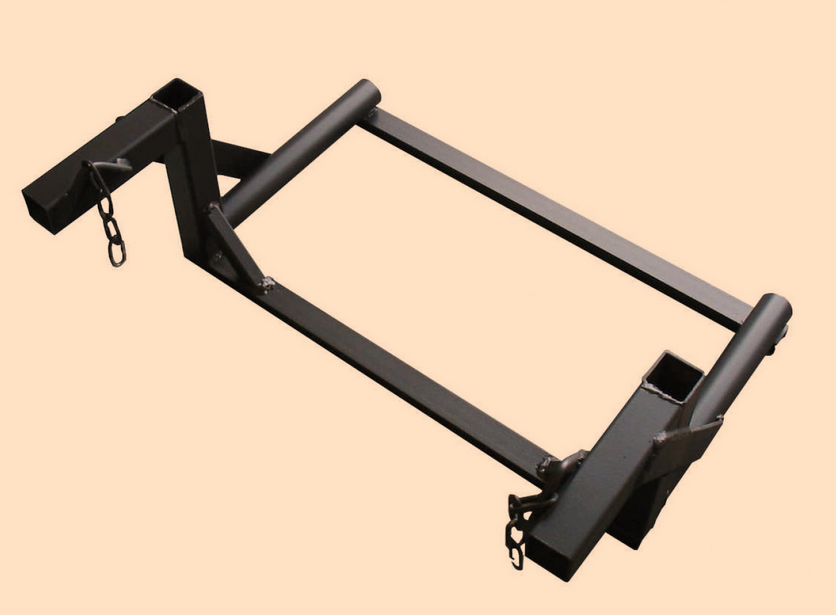

The Rubbish Chute Universal Fixing Frame from West Sussex Scaffolding offers a simple, dependable way to secure debris chutes to scaffolding on construction, renovation, and demolition sites across the UK.
Built for strength and durability, it enables safe, controlled disposal of rubble and waste from elevated areas into skips or collection points, reducing falling-object risks, manual handling, and helping keep sites clean and compliant with health and safety regulations.
Checkout to get your delivery cost
Sussex Depote
Trusted by customers
Best prices
Quick to install using standard scaffold tubes and couplers (typically two tubes and four couplings), the frame is compatible with most 20″ (500–560mm) rubbish chute systems, including modular chutes, hoppers, and side-entry units, without the need for specialist tools or modifications.
Stocked at our Aldingbourne base near Chichester, it’s available for yard collection or fast UK-wide delivery (usually 2–5 working days). Combine it with our full range of chute sections and accessories for a complete debris management solution.
Feature | Details |
Product Name | Rubbish chute universal fixing frame |
Typical Compatibility | 20-inch (≈500–560mm) modular rubbish chutes |
Material | Heavy-duty steel construction for strength and longevity |
Installation Method | Secures via 2 scaffold tubes + 4 scaffold couplers |
Primary Use | Attaching the top chute/hopper section to scaffolding |
Delivery Options | Collection from Aldingbourne yard or delivery (2–5 business days typical) |
Suitable Projects | Construction, demolition, roofing, refurbishment, high-rise works |
Compliance Focus | Aids adherence to site safety and waste management regulations |
It provides a stable mounting point to connect the top section or hopper of a rubbish chute system directly to scaffolding, ensuring safe and controlled channelling of debris to the ground.
It is specifically suited to standard 20-inch diameter chutes (common in the UK). If you’re using a different size (e.g., 22″ or 30″), check with us or consider size-specific alternatives.
You can attach it using two standard scaffold tubes placed horizontally, then secure it with four scaffold couplers (typically, right-angle couplers). The chute’s chain or bracket then links to the frame. Always follow manufacturer guidelines and have a competent person inspect the setup.
Yes, you’ll typically require rubbish chute sections (1m lengths), a top hopper, and possibly side-entry hoppers or end pieces to build the whole system. We can supply complete kits or individual components.
The design is optimised for attachment to scaffolding. For wall or roof mounting, alternative brackets or frames may be more appropriate.
Absolutely, it’s widely used on housing developments, commercial refurbishments, and public building works where safe waste removal from height is essential.
Task | Frequency | Recommended Action | Why It Matters |
Visual Inspection | Before each use & weekly | Check for cracks, bent sections, rust spots, or loose welds | Prevents failure under load |
Coupler Tightness Check | After initial install & after heavy use | Re-tighten all 4 couplers with scaffold spanner; check frame doesn’t shift | Ensures stability during debris flow |
Cleaning | After each project | Remove built-up dust, concrete residue, or wet debris with a brush & mild cleaner | Avoids corrosion and maintains a smooth chute connection |
Chain/Attachment Points | Monthly or per project | Lubricate lightly if stiff; inspect for wear or elongation | Keeps the chute secure and prevents detachment |
Storage | When not in use | Store indoors or covered; stack flat or upright to avoid bending | Extends lifespan in the UK’s variable weather |
Replacement Indicators | As observed | Replace if deformation >5mm, significant rust penetration, or weld cracks | Maintains compliance and safety |
Designed for standard UK rubbish chute systems, the frame safely supports around 8–12 chute sections plus debris (approximately 100–150kg total load, depending on chute type and fill). For taller drops or heavier materials, add intermediate restraints and follow the chute manufacturer’s height limits.
This frame fixes directly to scaffolding using ledgers and couplers, making it ideal for external scaffolded work. Window brackets are better suited to internal drops through openings during refurbishments.
The steel frame is suitable for typical site conditions, but prolonged exposure to rain can lead to surface rust. Wipe down and store dry between uses; a light protective spray is recommended for coastal sites.
Yes. For drops over 10–12 metres, best practice is to add an extra frame or restraint every 10m to reduce sway and spread loads.
No specialist training is needed beyond basic scaffold and coupler competence. Overall, chute setup should be overseen by someone experienced in working at height and site waste controls.
It helps keep debris contained, reducing the risk of falling objects, manual handling, and public exposure, whilst supporting compliance with Work at Height and Waste Duty of Care requirements.
We aim for delivery within 2–5 business days from our West Sussex location. Same-day or next-day collection is available if you visit our Aldingbourne yard.
